ZD Plus
ZD+ Connector is a high speed connector on Back-Plane. ZD+ provides the data rates up to 10Gb/s with differential signal. ZD+ is with a special shielding design. Compared to the other connectors on back plane, ZD+ performs in lower insertion loss and crosstalk. Product Application: Telecom, Router, Server, Wi-Fi Networking , Storage and Data Center.
unit : mm
| Product Picture | Product No. | Product Name | Pitch | Pin | Height |
|---|

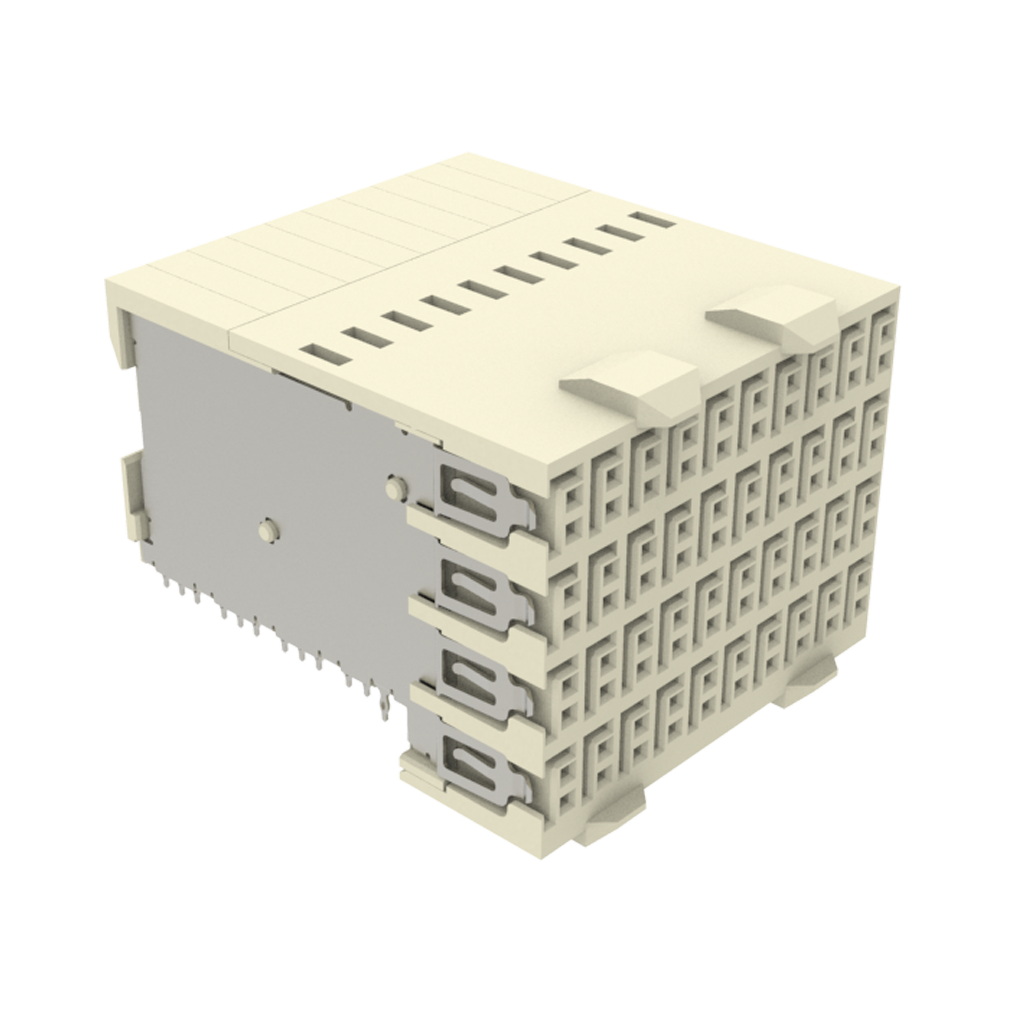

 | 108F | ZD PLUS CONNECTORFemale / Right-Angle / 4Pair | 2.5 | 4 Pair x 10 Row | 15.67mm |
